Description
Project Overview

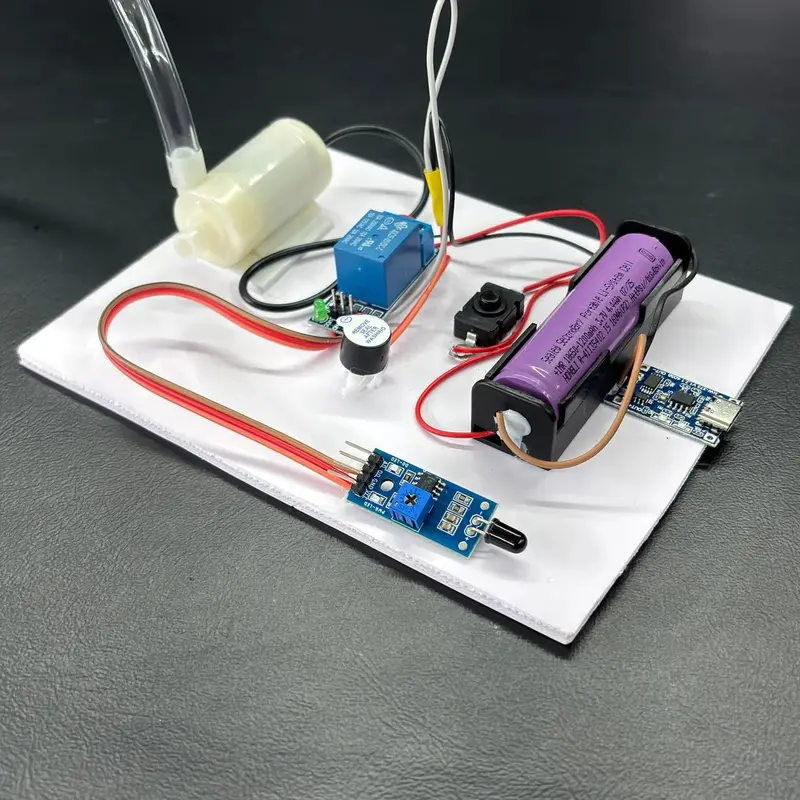

The DIY Automatic Fire Extinguisher using Fire Flame Sensor (without Arduino) is a simple and effective science project designed for students to understand basic fire detection and automatic safety systems. This project uses a flame sensor module to detect fire and automatically activate a water pump or extinguisher mechanism without the use of any microcontroller.
It Contains
- Fire Flame Sensor Module
- 1 Channel Relay Module
- 5V DC Water Pump
- Battery with Charging Module
- Water Pipe
- Connecting Wires
- Sunboard Board
How It Works
- The fire flame sensor continuously monitors infrared light emitted by flames.
- When a fire is detected within its sensing range, the sensor outputs a signal.
- This signal triggers the relay or transistor circuit.
- The relay activates the DC water pump or solenoid valve.
- Water is sprayed automatically toward the fire source, helping extinguish it.
- Once the flame is removed, the system automatically turns OFF.
- This system works without Arduino, making it easy to understand and suitable for beginners.
Applications
- School science exhibitions
- Fire safety demonstration models
- Automatic fire detection systems
- Smart home safety concept models
- Industrial fire safety learning kits
- Educational STEM projects
Learning Outcomes
- Understanding fire detection using flame sensors
- Learning automatic control systems without microcontrollers
- Basics of relay switching and DC motors
- Awareness of fire safety technology
- Practical electronics and circuit building skills
- Hands-on STEM learning experience
