SPC Rear Camber and Toe Shim Set – 24-Piece, Fits 2012–2019 Fiat 500

Description

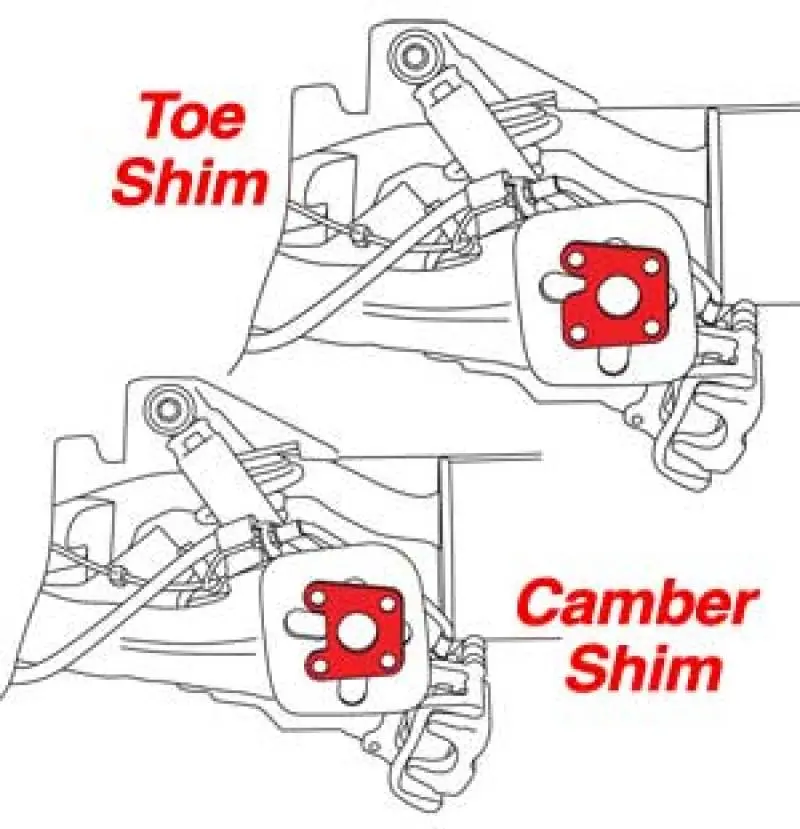

Bring toe and camber back to factory specification on the rear of the Fiat 500 with these fixed change shims from SPC. The 24 piece set includes two each of the toe shims that will adjust from -.5° to +.5° in 1/8° increments and camber shims that will adjust from ±.25° to ±1.0° in 1/4° increments. Combine up to two shims to dial in both toe and camber. Shims are also available individually. Fix tire wear issues and return proper handling.
Note: You will need inverted (female) torx socket E20 to remove the hub.
Set includes two each of the following (24 shims)
Toe Series UPC Code
71771 – Toe Shim +0.13°
71772 – Toe Shim +0.25°
71773 – Toe Shim +0.38°
71774 – Toe Shim +0.50°
71776 – Toe Shim -0.13°
71777 – Toe Shim -0.25°
71778 – Toe Shim -0.38°
71779 – Toe Shim -0.50°
71781 – Camber Shim ±0.25°
71782 – Camber Shim ±0.50°
71783 – Camber Shim ±0.75°
71784 – Camber Shim ±1.00°
Installation time: .5 hr/side
Required: 1 – 2 shim per wheel (depending on desired change)
