SPC Coil Spring Stabilizer Kit (4-Pack) — 1-1/4 Inch Diameter, Compact Radius Design

Description

Two stabilizers are recommended per coil spring. If front stabilizers are rubbing against the spring well housing, the stabilizer must be installed from the inside of the coil springs. Four per pack.
Due to the curvature of some springs, two sizes may be required for the same spring (Example: 24700 on inside of coil, 24750 on outside). When measuring and installing stabilizers, one space should be skipped between coils.
Stabilizer Heights – Narrow Units – for small diameter (.58″) coil springs
Stabilizer Number     Height (“A”)
24640                       5/8″
24690                       7/8″
24750                       1-1/4″
24751                       1-1/4″ – Short Nose

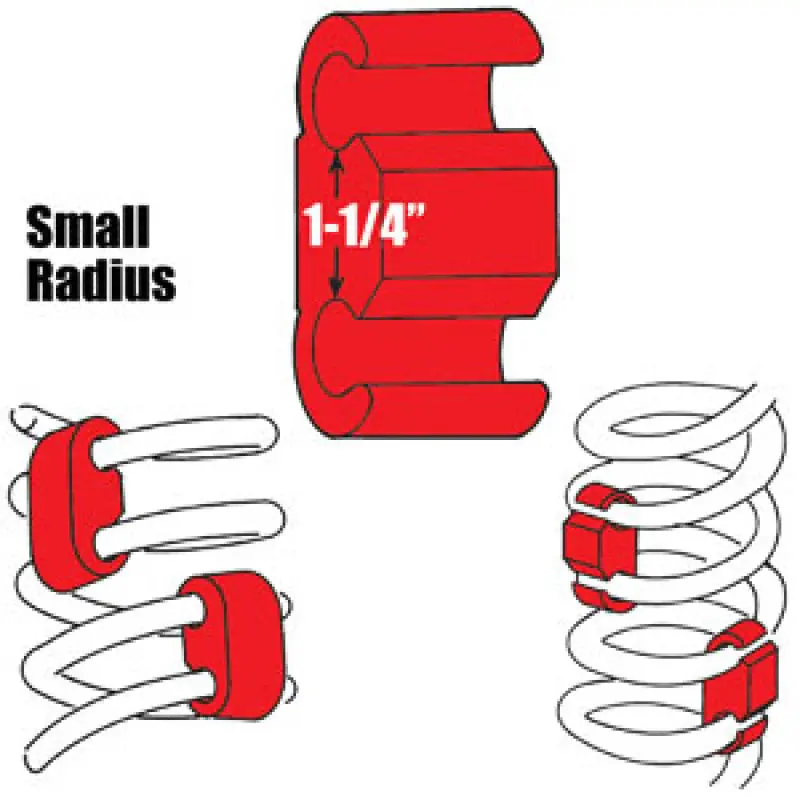

24740                       1-1/4″ – Small Radius
24790                       1-1/2″
Stabilizer Heights – Regular Units – for average diameter (.63″) coil springs
Stabilizer Number     Height (“A”)
24650                       5/8″
24700                       7/8″
24701                       7/8″ – Short Nose
24960                       1″
24970                       1-1/4″
24800                       1-1/2″
24850                       1-3/4″
24900                       2″
24950                       2-1/2″
