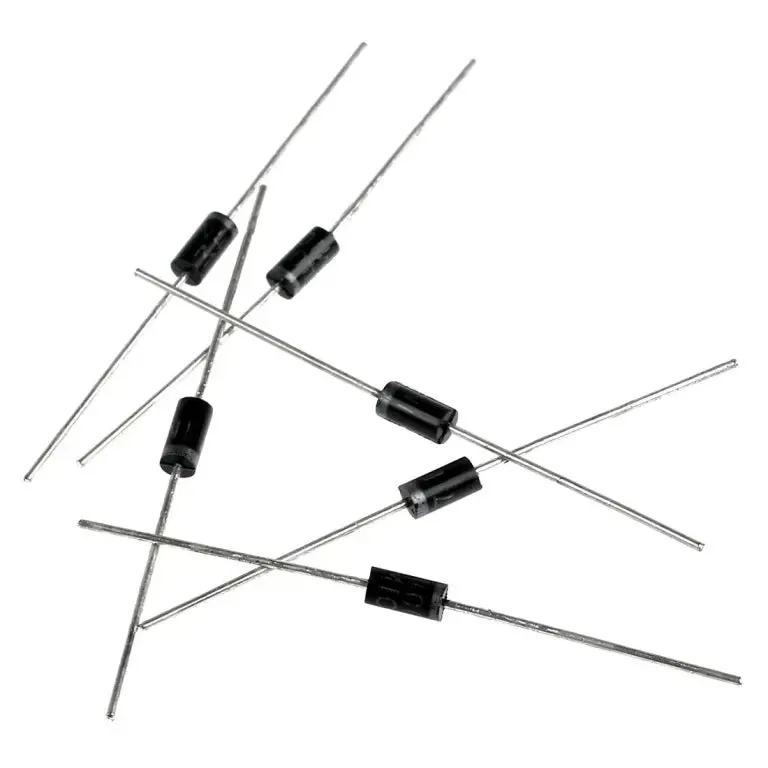

1N4007 Silicon Rectifier Diode Pack (5 pcs, 1 A / 1000 V) – Standard Power Diodes for AC/DC Conversion and Protection

Description

Technical Specifications

• Model: 1N4007
• Type: General-Purpose Rectifier Diode
• Material: Silicon
• Polarity: Yes (cathode marked with band)
• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000V
• Forward Current (IF): 1A
• Peak Surge Current (IFSM): 30A (8.3ms single half-sine wave)
• Forward Voltage Drop (VF): ~1.1V at 1A
• Reverse Leakage Current: <5µA at rated voltage
• Operating Temperature: –55°C to +150°C
• Package Type: DO-41 axial lead
• Mounting: Through-hole
• Lead Length: Standard PCB soldering compatible
• Applications:
  • AC to DC rectification
  • Power supply circuits
  • Battery chargers
  • Reverse polarity protection
  • Voltage blocking and isolation
  • Low-frequency inverter circuits
  • General electronics and DIY projects

Technical Descriptions

The 1N4007 Diode is a widely used general-purpose rectifier diode designed for AC-to-DC conversion, voltage blocking, and reverse polarity protection in electronic circuits. With the ability to handle up to 1A forward current and 1000V peak reverse voltage, the 1N4007 is ideal for low to medium-power applications.

Built with robust silicon rectifier technology, this diode provides efficient operation, low leakage current, and stable performance. Its DO-41 axial package makes soldering and PCB mounting easy, making it perfect for DIY electronics, Arduino and Raspberry Pi projects, SMPS circuits, battery chargers, and power supplies.

Reliable, affordable, and versatile, the 1N4007 is a must-have component for students, hobbyists, repair technicians, and engineers working on any type of electronic project.
